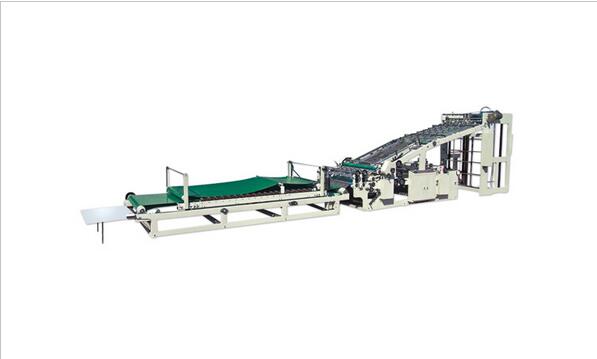

Full auto laminating machine
Features:
1. Description and characteristics:
Automatic Laminator, model for the automatic type, to reduce the staff of the load. Dedicated to the printing of corrugated cardboard and precise fit.
High production efficiency.
Rapid transformation to adjust the paper.
A variety of paper models of the operation mode changes.
Strong structure, durable.
2. Operation design:
Under the paper on the use of paper and paper fit one way out automatically. Paper to push the claw before sending the chain orientation.
All the axle system based on strong timing belt drive, in order to achieve correct synchronization accuracy.
Automatic switch to add glue to prevent the loss of glue or paste round the problem of lack.
Paste using high-precision wheel with grooves to fit all types of paper coating.
Corrugated paper using suction belt conveyor at the end of the paper features a variety of paper for the transmission.
Hang the paper up and down the main drive of paper used, the paper is more stable.
The whole machine adopts frequency control, a wide range of adjustment, easy to operate.
3. posted appropriate use paper:
Feeder can be printed on the delivery of cardboard and fit to complete three cardboard.
Long paper sets suction belt can send A, B, C, E, F wave corrugated board, corrugated and flat cardboard 270g/m2 double or more units of the paper.
4. Clean:
Wave corrugated paper sets with paper dust filter, paper dust can be set up and fast cleaning.
Clear round of glue paste can be run in order to quickly clean water.
Tank with external pull-host, with multiple outlets easier to clean.
5. customized special specifications:
Requirements for special paper length, can provide a reasonable design.

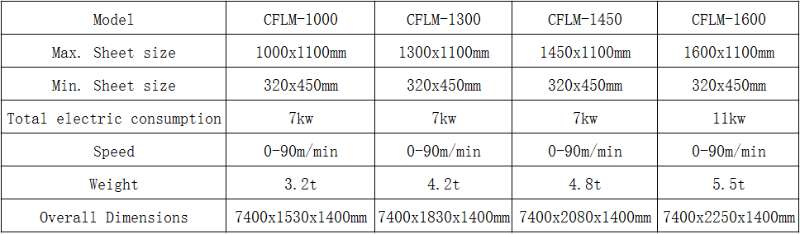

Specifications:
