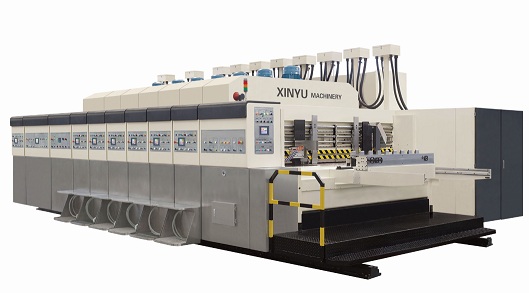

High speed flexo printer series
Features:
★Integrated CNC control system, troubleshooting, production.
management, remote maintenance.
★Quick printing plate mounting, motorized phase zero.
★Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.
★High precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
★Choose international brand electric components and transfer bearings, pass CE certification.
Main Console:
★Windows base CNC control system.
★Remote maintenance.
★Huge order saving.
★Trouble-shooting
★Optimized order memory.
★Production and order management.
★Available to connect with the customer internal ERP.
Feeding Unit:
★Operation can be controlled by both main console and each unit touch screen.
★Lead-edge feeding, adjustable air control, precious registration.
★Precious liner guideway lateral moving.
★Motorized side squaring and paper support.
★Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.
Printing unit：
★Operation can be controlled by both main console and each unit touch screen.
★Top print, high precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
★Quick printing plate mounting, motorized phase zero.
★Ink saving circulate system, safety ink taking, short ink alarm.
★Option: Double doctor blade.
Drying Unit:
★Operation can be controlled by both main console and each unit touch screen.
★Vacuum transfer, motorized gap adjustment.
★Energy saving dry section, hot air circulating,settable temperature.
★Option: Infrared ray or UV dryers.
Slotting unit：
★Operation can be controlled by both main console and each unit touch screen.
★Liner guideway lateral moving device with universal cross joints.
★Pre-creaser, creaser slotting holder motorized gap control.
★Box height motorized control.
★Large displacement of middle knife.
Die-cutting Unit:
★Servo driven control.
★Up die-cutting, clean up scrap thoroughly, motorized die-cutting pressure adjustment.
★Die-cutting roll pneumatic self-locking device, smooth die-cutting.
★Sheet guide roll displacement motorized control, quick order change.
★C.U.E quick change die-cut anvil with grinding mechanism. Precious settable speed difference compensation, ensure die-cutting accuracy.
Waste remove Unit：
★Independent stripping unit.
★Belt transfer, angle adjustable fan assistant clean up scrap.
★Dual vibration roll, speed frequency invert control.
★Powerful fan clean up scraps.
Stack Unit:
★Stacker operate automatic or manually.
★Pneumatic lifting device for receiving arm , tightness degree adjustable.
★Different speed section type stacking, transfer belt inverter.
★tacker platform lifting inverter control, protection device for lifting safety.
★Side square. Pneumatic stacker lifting.
