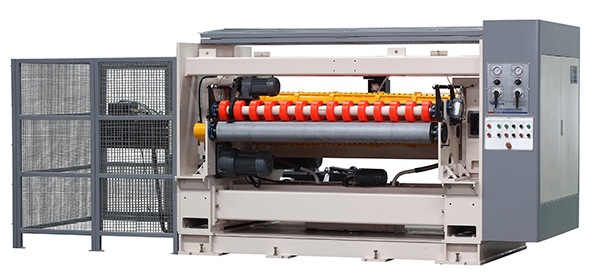

NC cutoff with rotary blade
AC servo motor, Germany KEB servo control motor drive, 10.4-inch colorful touch screen.
Effective flute width 1600mm cutting length 50
Automatic change the order, can store 100 groups of orders memory.
Adopt the blade inlay the high speed steel, high hardness and long use-life, straight blade structure.
0mm—9999mm，cutting precision: constant speed ±1mm，design speed: 180m/min.
The tooth surface quenching and gear grinding after the transmission gear adopting the 40 Gr thermal refining, tight installation, adopt the spray type lubrication
Pneumatic upper and record the meter wheel and creasing wheel, easy to operate.
The blade shaft of the cutoff machine add seal ring, no oil leaking.
★The front and back feeding paper wheels all adopt the sun wheel creasing way, deliver atable, pressure equality, not easy to press the plate broken or cause bad jam.
★Precision adjustable no-gap gear, ensure the blade edge accurate mesh, run balance.
★Blade roller: high quality precision forging steel, equalization treatment, have good stability.
※Common Spec:
1, Max working width: 1600mm
2, Operation Direction: Left or right (decided by the workshop of customer)
3, Max machinery speed：180 m/min
4, Min paper width: 500mm
5, Max paper width: 9999mm

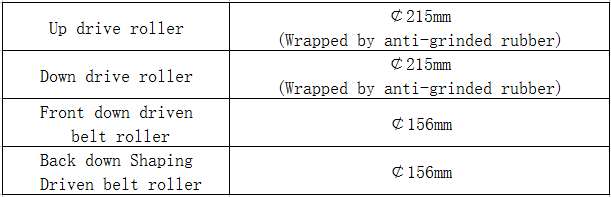

※Spec of the rollers’ diameter:
